Weight display

Previous pageReturn to chapter overviewNext page

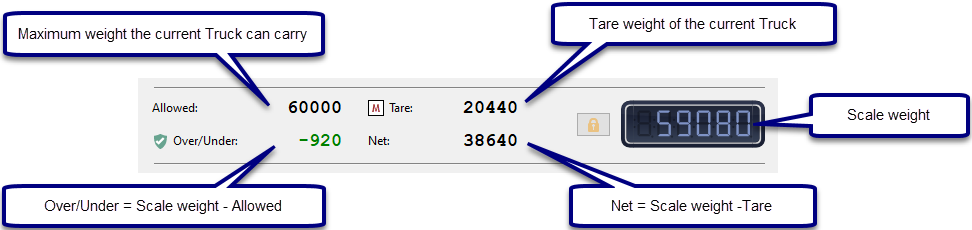

The Weight display group contains the following controls:



A display control to view the current Scale weight
A label indicating the current Tare and an indication of whether the Tare weight was recorded automatically or manually
A label indicating the current Net weight (Net = Scale weight - Tare)
A label indicating the maximum weight the current Truck is allowed to carry
A label indicating the amount the Scale weight is Over/Under the Allowed amount

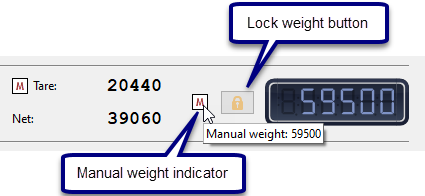

A toggle button to lock an unlock the current scale weight
An image control that indicates in a Manual weight has been entered





clip0136





clip0141



Allowed and Over/Under controls

The Allowed amount is the lesser of the current Truck's Allowable and Registered Gross weights.



If a Trucks Allowed weigh is 0, the Allowed and Over/Under values will not be visible.

Locking the scale weight

The scale weight can be locked and unlocked by toggling the Lock weight button.



When the Lock button is up, the Scale weight control is continuously updated to show the latest data that was received from the scale's digital weight indicator.



When the Lock button is down, the Scale weight control is no longer updated and the last Scale weight is shown.
