To start the Ticket Tables editor, click the Ticket Printers tile. To return to the Home view, click the Home icon on the system menu.
The Ticket Printer table allows you identify and configure specific printers for purpose for printing tickets. In general:
•A Ticket Printer must assigned to a specific Ticket Table.
•Each Ticket Table can have multiple printers assigned to it.
•Each Ticket Printer must be assigned a Ticket format.
•Printers can be local or located on a network.

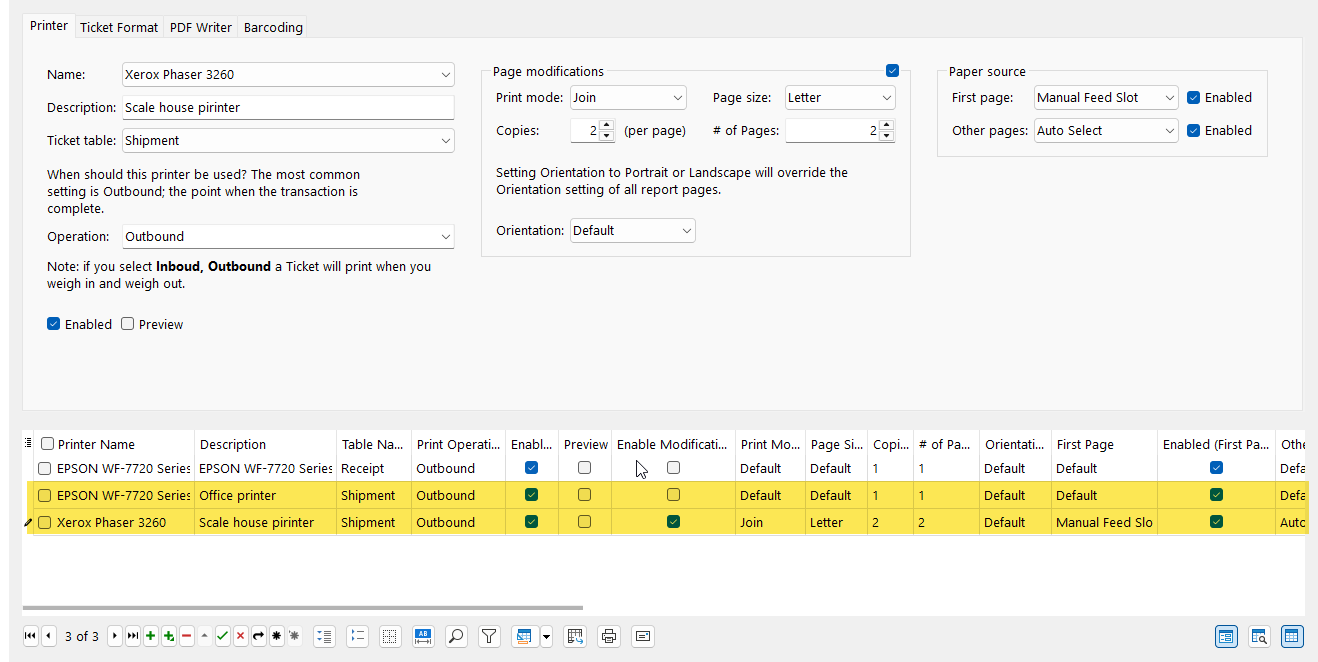

In the example below you'll see that there are two printers assigned to the Shipment Ticket table.
•Office printer will print a single copy of the Ticket.
•Scale house printer will print to the Xerox Phaser 3260 printer and paper will be fed into the printer through the manual feed slot. It will print two copies of the Ticket on a single 8.5" x 11" page and it will print 2 pages for a total of 4 tickets.
