Creating a new form

<< Click to Display Table of Contents >>

Navigation:  Getting Started > Printer Setup > Dot matrix printers >

Creating a new form

The standard ticket format is designed to print on a blank page with the dimensions 8.5" x 5.5". If you use a laser printer you can print 2 copies of the default on a single page.



If you intend to use a dot matrix printer, you will need to configure the printer and create a new form to allow Dispatch to print correctly (in other words, on a half page).

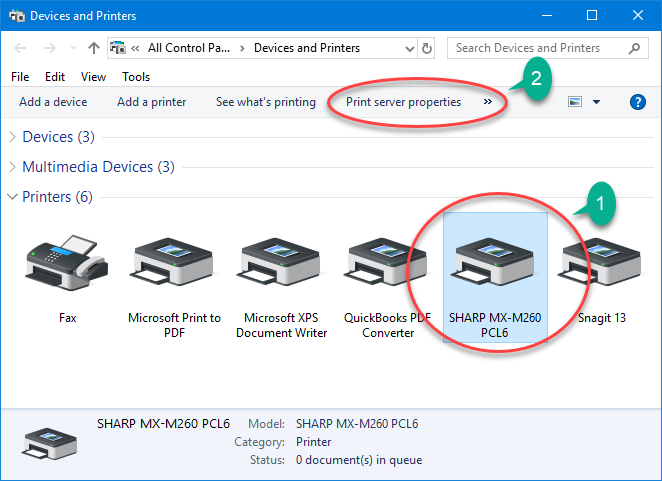

Open the Devices and Printers folder.



Devices and Printers



clip0145



1. Select your printer

2. Click Print server properties

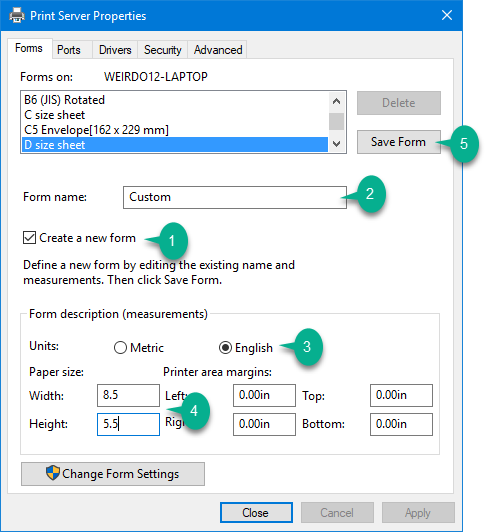

Print server properties



clip0147



1. Click Create a new form

2. Name the form Custom

3. Select the measurement unit English

4. Set the Width to 8.5 and Height to 5.5

5. Click Save Form
