Measurement Unit editor

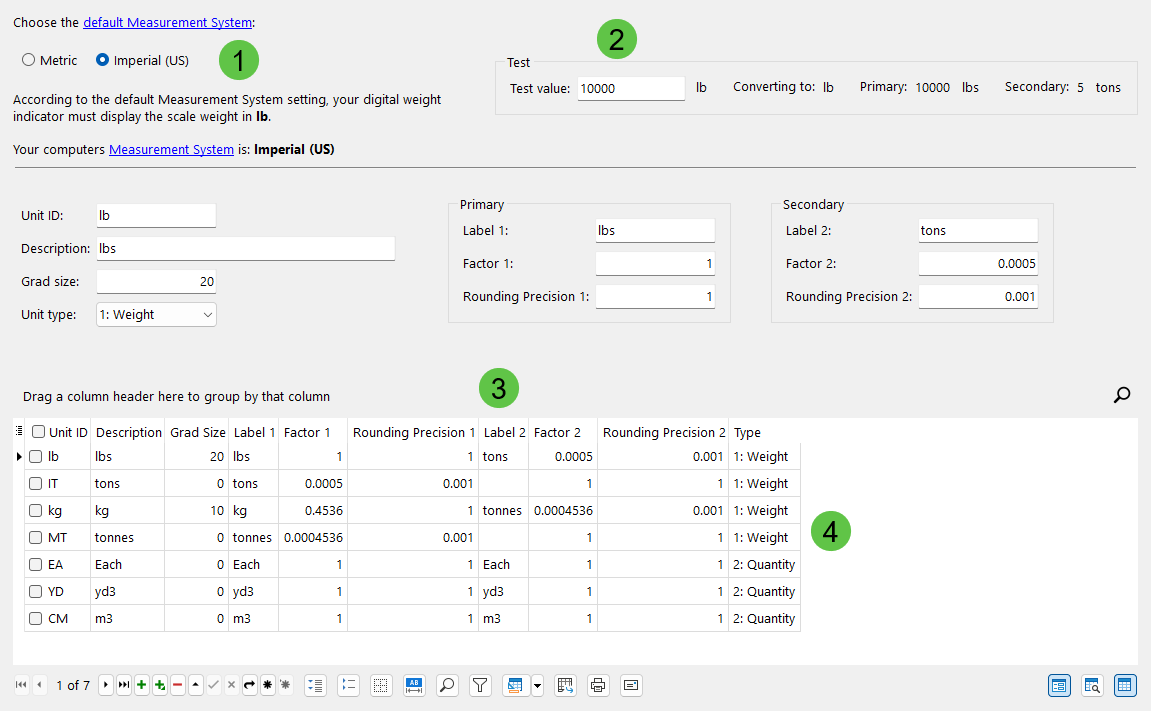

To start the Measurement Units editor, click the Measurement Units tile. To return to the Home view, click the Home icon on the system menu.



1.Select the default Measurement System.

2.You can change Test value to see how conversion works for the current Measurement Unit.

3.Factor 1, Rounding Precision 1, Factor 2 and Rounding Precision 2 values are automatically updated when the Measurement System value changes.

4.As you select a row in the Grid, the values in the Test group (2) will be updated.
