<< Click to Display Table of Contents >> Adding Zones to an Order |
|

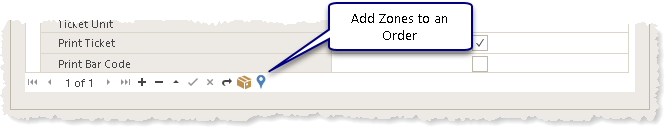

When you click on the Order grid the Add Zones button will become visible.

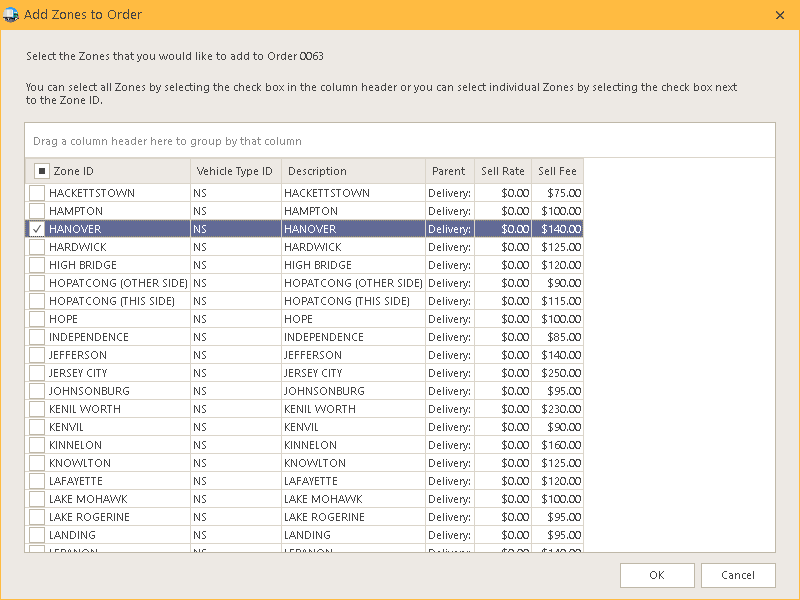

Use this dialog to quickly select one or more Zones to add to an Order.
Zones are selected using the check boxes at the left side of each row in the Grid control. In the example below, the HANOVER has been selected.
If the OK push button is clicked, Zone HANOVER will be added to Order 0063 and the Add Zones to Order dialog will close.
If the user clicks Cancel, the Add Zones to Order will close and nothing will be added to the Order without regard to whether any Zones have been selected or not.
